Tidland Reel Spools

•
•

Big and Heavy. If this describes your requirements for winding and unwinding, then you should check out the benefits of using this amazing air shaft instead of using multiple expensive reel spool mandrels in your application. The Series 860 is a heavy-duty air shaft designed for maximum reliability and performance in demanding mill environments, reducing the cost and storage of expensive reel spool mandrels. This shaft utilizes our innovative two-piece expanding elements, with a spiral design that provides 360º of radial grip and intrinsically equalized load distribution.

The advanced features of these shafts include a two-piece expanding element design, nonmetallic retraction springs, durable poly bladder, and a fail-safe multi-circuit air system, with check valves to ensure that a loss of air in one element will not affect the expansion and performance of the other elements. Its ergonomic design also provides increased safety by eliminating the need for dangerous locking collars or wrenches.

The Series 860 Mill Shaft is designed for heavy-duty in ID cores up to 610 mm (24 inches). The spiral strip design of this shaft minimizes core deformation and eliminates critical speed and vibration issues that prevent successful turn-ups and splices.

Key Features

Heavy-duty shaft specifically engineered to perform in demanding mill environments
Spiral strip design delivers 360º of radial grip and intrinsically equalized load distribution
Two-piece expanding elements can be changed easily
Journal detail can be customized to fit existing equipment
Available in many sizes to accommodate any mill application
Faster, easier shaft handling maximizes productivity
Durable construction designed to withstand abuse and abrasion
Manufactured to your specifications

Specifications

Nominal Sizes		Fiber Core	Steel Core
mm	inches	in-lbs/in	in-lbs/in
254	10	885	938
305	12	1415	1500
355	14	1650	1749
508	20	2944	3120

Documents

Please log in or create an account to download this protected document.

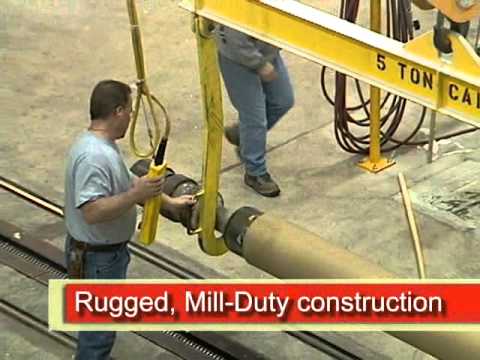

Product Video
