Tidland Raptor Series Air Powered Lug Chucks

•
•

Tidland's Raptor Series Air Powered Lug Chucks are easy to use and maintain and help eliminate the core damage usually associated with shaftless applications. The Air Powered Lug Chuck is ideal for high-speed printing, laminating, sheeting applications on unwind flying or zero speed splicers and other shaftless unwind/rewind applications. Unlike other chucks, Tidland's Raptor Series Air Powered Chucks offer on-machine maintenance and toolless adapter changes from 76.2 mm (3 inch) to 305 mm (12 inch) cores in less than 5 seconds.

Key Features

Wide-footprint lug is non-destructive allowing maximum reuse of cores
Durable construction reduces total cost of ownership
Positive, mechanical retraction of lugs ensures easy removal from cores
Pneumatic lug activation results in positive core grip at all times
Concentrically expands and centers cores within 0.4 mm (0.015") for improved splice reliability and increased operating speeds
Toolless adapters for easy changes from one core size to another

Specifications

Air Powered Chuck Specifications                                     BASE CHUCKS- Flange Mounted 3" AP Chuck   6" AP Chuck                   Part No. 692374   691294                         Units Metric English   Metric English                   Nominal Core Diameter 76.2 mm 3.00 in   152.4 mm 6.00 in                         Collapsed Diameter 74.7 mm 2.94 in   150.9 mm 5.94 in                         Expanded Diameter 81.5 mm 3.21 in   159 mm 6.26 in                         Max Roll Weight 3181.8 Kg 7000 lb   5454.5 Kg 12000 lb                         Max Allowable Torque (Note 1) 795.26 Nm 7040 in-lb   2253.41 Nm 19950 in-lb                         Mounting Bolt Circle Diameter 177.8 mm 7.00 in   203.2 mm 8.00 in                         Maximum Exposed Speed 6500 rpm 6500 rpm   3210 rpm 3210 rpm                         Maximum Exposed Speed 1525 Mpm 5000 fpm   1525 Mpm 5000 fpm                         Housing Width 76.5 mm 3.01 in   73.9 mm 2.91 in                         Expanding Lug Length 84.1 mm 3.31 in   84.1 mm 3.31 in                         Expanding Lug Width 43.7 mm 1.72 in   43.7 mm 1.72 in                         Overall Length (A) 179.6 mm 7.07 in   177 mm 6.97 in                         Core Penetration (B) 98 mm 3.86 in   98 mm 3.86 in                         Housing Diameter (C) 203.2 mm 8.00 in   245.4 mm 9.66 in                                                                                                 3" ADAPTERS-Chuck Mounted Adapters 5" AP Adapter   5.91" AP Adapter   6" AP Adapter   6.75" AP Adapter   7.42" AP Adapter   8" AP Adapter Part No. 622178   629669   586289   652130   678591   652736 Units Metric English   Metric English   Metric English   Metric English   Metric English   Metric English Nominal Core Diameter 127 mm 5.00 in   150.1 mm 5.91 in   152.4 mm 6.00 in   171.5 mm 6.75 in   188.5 mm 7.42 in   203.2 mm 8.00 in Collapsed Diameter 125.5 mm 4.94 in   148.6 mm 5.84 in   150.9 mm 5.94 in   169.9 mm 6.69 in   186.9 mm 7.36 in   201.7 mm 7.94 in Expanded Diameter 131.8 mm 5.19 in   155.4 mm 6.12 in   157.2 mm 6.19 in   177.3 mm 6.98 in   193.5 mm 7.62 in   208 mm 8.19 in Max Roll Weight 3181.8 Kg 7000 lb   3181.8 Kg 7000 lb   3181.8 Kg 7000 lb   3181.8 Kg 7000 lb   3181.8 Kg 7000 lb   3181.8 Kg 7000 lb Max Allowable Torque (Note 1) 1325.77 Nm 11730 in-lb   1566.99 Nm 13870 in-lb   1591.51 Nm 14080 in-lb   1789.59 Nm 15840 in-lb   1968.06 Nm 17410 in-lb   2122.01 Nm 18780 in-lb Expanding Lug Length 67.6 mm 2.66 in   67.6 mm 2.66 in   67.6 mm 2.66 in   67.6 mm 2.66 in   67.6 mm 2.66 in   67.6 mm 2.66 in Expanding Lug Width 49.8 mm 1.96 in   49.8 mm 1.96 in   49.8 mm 1.96 in   49.8 mm 1.96 in   49.8 mm 1.96 in   49.8 mm 1.96 in Overall Length (A) 89.7 mm 3.53 in   89.7 mm 3.53 in   89.7 mm 3.53 in   89.7 mm 3.53 in   89.7 mm 3.53 in   89.7 mm 3.53 in Core Penetration (B) 83.3 mm 3.28 in   83.3 mm 3.28 in   83.3 mm 3.28 in   83.3 mm 3.28 in   83.3 mm 3.28 in   83.3 mm 3.28 in Base Chuck for Adapter 692374 p/n 692374 p/n   692374 p/n 692374 p/n   692374 p/n 692374 p/n   692374 p/n 692374 p/n   692374 p/n 692374 p/n   692374 p/n 692374 p/n                                                                         6" ADAPTERS 8" AP Adapter   10" AP Adapter   12" AP Adapter                   Part No. 670787   670093   670100                   Units Metric English   Metric English   Metric English             Nominal Core Diameter 203.2 mm 8.00 in   254 mm 10.00 in   304.8 mm 12.00 in                   Collapsed Diameter 201.7 mm 7.94 in   252.5 mm 9.94 in   303.3 mm 11.94 in                   Expanded Diameter 209.8 mm 8.26 in   260.6 mm 10.26 in   311.4 mm 12.26 in                   Max Roll Weight 5454.5 Kg 12000 lb   5454.5 Kg 12000 lb   5454.5 Kg 12000 lb                   Max Allowable Torque (Note 1) 3005.53 Nm 26600 in-lb   3756.67 Nm 26600 in-lb   4507.81 Nm 39900 in-lb                   Expanding Lug Length 71.1 mm 2.80 in   71.1 mm 2.80 in   71.1 mm 2.80 in                   Expanding Lug Width 60.2 mm 2.37 in   60.2 mm 2.37 in   60.2 mm 2.37 in                   Overall Length (A) 100.6 mm 3.96 in   100.6 mm 3.96 in   100.6 mm 3.96 in                   Core Penetration (B) 85.3 mm 3.36 in   88.3 mm 3.48 in   88.4 mm 3.48 in                   Base Chuck for Adapter 691294 p/n 691294 p/n   691294 p/n 691294 p/n   691294 p/n 691294 p/n                                                                                           Notes:                                   (1) Maximum Allowable Torque until core slips assuming 80 psi, good quality fiber core and two brakes/drives. If the application uses only one brake/drive then reduce the maximum allowable torque by 50%.

Documents

Please log in or create an account to download protected documents.

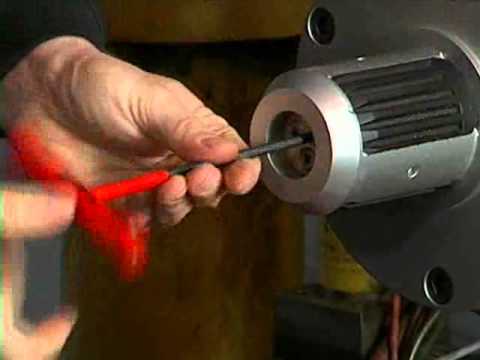

Product Video
