Tidland Performance Series Knifeholders
Providing faster setups, increased productivity and unrivaled finished roll quality, the revolutionary Performance Series Knifeholder is available in three sizes to accommodate a wide range of slitting materials and web speed, for shear, crush and razor slitting of a wide range of applications, from very light converting to mill duty finishing operations. Operators can choose from a variety of design options, selecting a knifeholder specific to your needs.
Key Features:
Modular mounting options that allow retrofit to any machine
Operator-friendly setup features
Automatic half-stroke feature sets the correct side pressure between top and bottom anvil knives
Optional pneumatic lock mount with pinion and traverse knob
Made of durable materials to withstand harsh industrial environments
Air Purged, dust-proof design
Quick change cant angle key
Precise process controls to increase roll quality
Simplified, positive controls of pneumatic functions
No external hoses between knifeholder components
Tool-free, one-handed cartridge mount with safety lock
Specifications:
Class I Performance Series Knifeholder Minimum Slit Width Maximum Designated Speed* Blade Diameter 25 mm (1 inch) 1,000 mpm (3,500 fpm) 90 mm (3.5 inches) Class II Performance Series Knifeholder Minimum Slit Width Maximum Designated Speed* Blade Diameter 50.8 mm (2 inches) 1,700 mpm (5,500 fpm) 150 mm (5.91 inches) Class III Performance Series Knifeholder Minimum Slit Width Maximum Designated Speed* Blade Diameter 76.2 mm (3 inches) 3,000 mpm (10,000 fpm) 200 mm (7.87 inches) * Dependent upon material and application
Documents:
Videos:
-

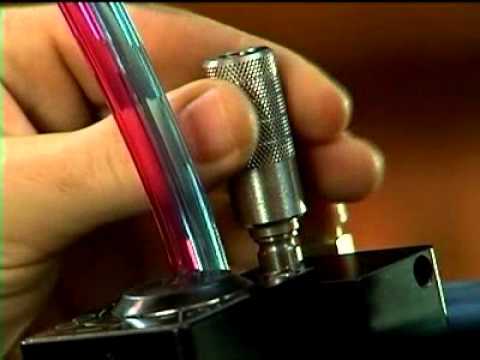

Tidland Performance Series Knifeholders IntroductionProviding faster setups, increased productivity and unrivaled finished roll quality, the revolutionary Performance Series Knifeholder is available in three sizes to accommodate a wide range of slitting materials and web speed, for shear, crush and razor slitting from light converting to mill-duty
-
Tidland Performance Series Knifeholder Features - Part 1Reduce maintenance with the Automatic Half Stroke, Reversible Cartridge and Cant Angle Key.
-
Tidland Performance Series Knifeholder Features - Part 2Speed changeover with the Function Control Knob and Removable Cartridge.
-
Tidland Performance Series Knifeholder Features - Part 3Improve slit quality with the Calibrated Depth Control Knob and Pneumatic Lock features.
